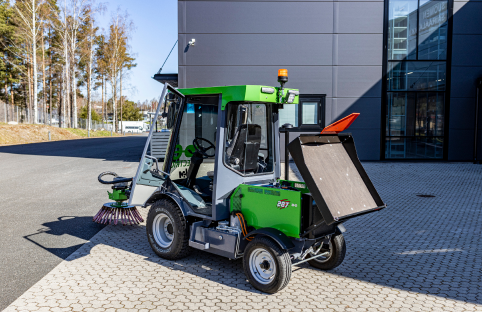

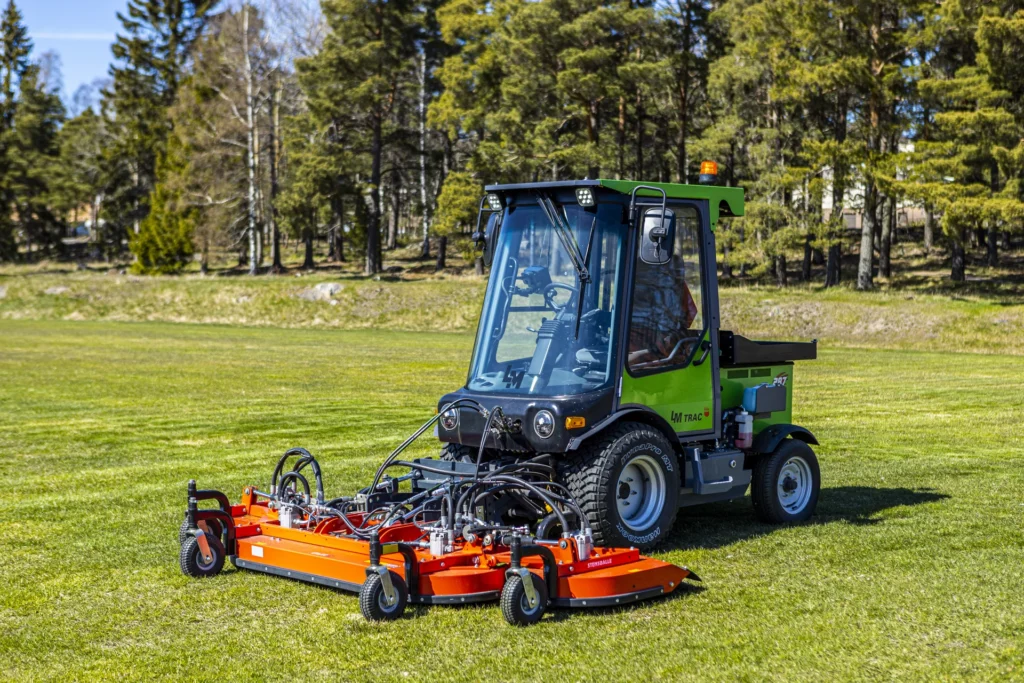

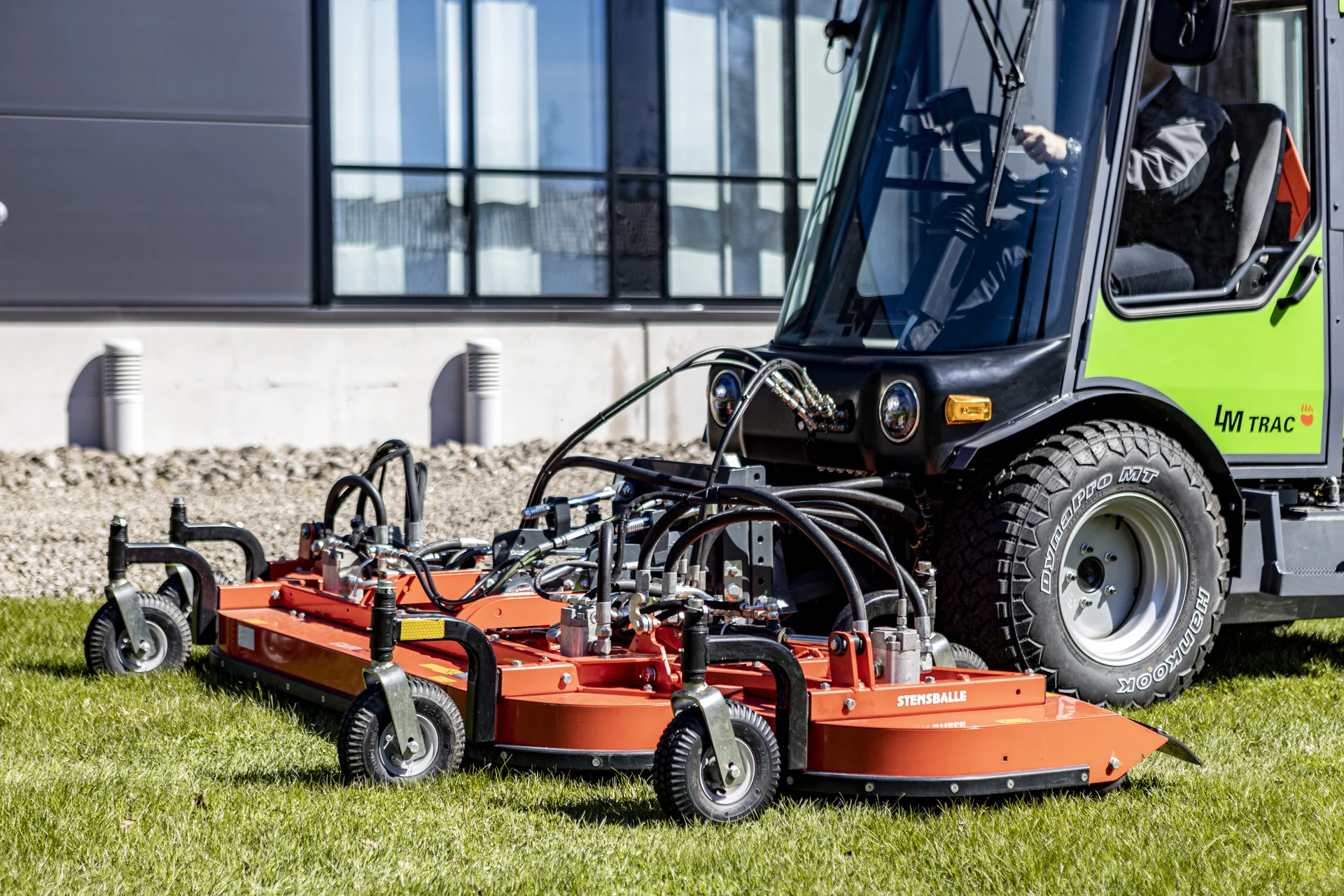

LM TRAC 287

Engine
Perkins Syncro 1,7; 3 -syl. Turbo Diesel; 1662 cc; 36 kW 2400 r/min (48 hv); Torque 166 Nm/1400 r/min; EU Stage V / U.S. EPA Tier 4 Final
Power transmission
Hydrostatic four wheel drive (or two wheel); Rexroth; 0-60 ltr/min; 350 bar
Driving speed
25 km/h
Speed areas
2 options; 0-15 km/h ja 0-25 km/h
Cylinder hydraulics
15 ltr/min; 150 bar
Engine hydraulics
47 ltr/min; 200 bar; electronic control
Steering
Hydrostatic rear wheel steering
Brakes
Inside front wheelmotors electro hydraulic
Electrical system
12 V
Options for fastening
A-frame or Kugelmann 3-point coupling
Tanks
Fuel tank 35 l; Hydraulic oil tank 55 l
Wheels
31×11.5-15 front; 175/13 rear
Dimensions
Length – 2680 mm; Height – 2095 mm; Width – 1340 mm; Axel span – 1540 mm; Ground clearance – 180 mm; Own weight – 1560 kg
